Quantum Fog
0.9.3
|
Public Member Functions | |
| def | __init__ (self, id_num, name="blank") |
| def | __lt__ (self, other) |
| def | add_neighbor (self, node) |
| def | remove_neighbor (self, node) |
| def | has_neighbor (self, node) |
Public Attributes | |
| id_num | |
| topo_index | |
| name | |
| neighbors | |
| visited | |

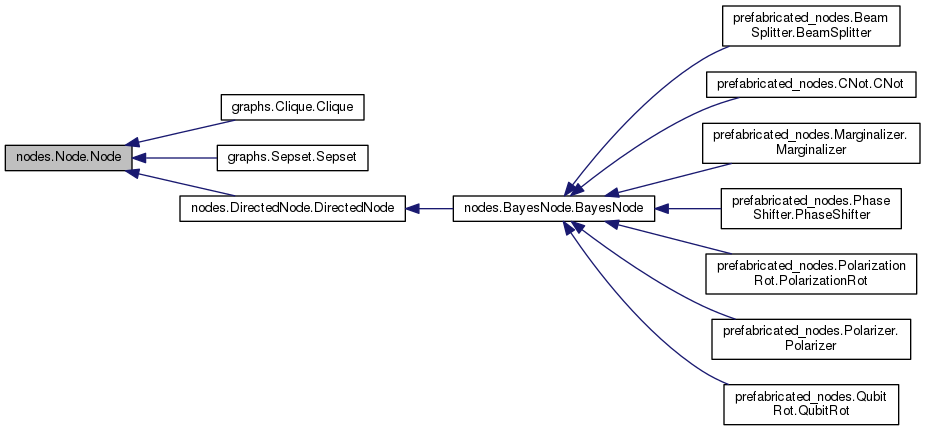

In its most basic form, a Graph is just a set of Node's. A BayesNode is
a DirectNode is a Node. Similarly, a BayesNet is a Dag is a Graph.
Attributes
----------
id_num : int
Should be an int that is immutable and different for each node.
topo_index : int
Initially defined to be equal to id_num. After a topological sort,
indices are permuted amongst the nodes so as to be in topological
order, root nodes having lowest topo_index.
name : str
Optional, preferably different for each node.
neighbors : set[Nodes]
visited : bool | def nodes.Node.Node.__init__ | ( | self, | |
| id_num, | |||
name = "blank" |
|||
| ) |
Constructor Parameters ---------- id_num : int name : str Returns -------
| def nodes.Node.Node.__lt__ | ( | self, | |
| other | |||
| ) |
Defines a < operator for Node's. Used in topological sorting. Parameters ---------- other : Node Returns ------- bool
| def nodes.Node.Node.add_neighbor | ( | self, | |
| node | |||
| ) |
Make 'node' a neighbor of self and vice versa if they aren't the same node. Parameters ---------- node : Node Returns ------- None
| def nodes.Node.Node.has_neighbor | ( | self, | |
| node | |||
| ) |
Check if 'node' is a neighbor. Parameters ---------- node : Node Returns ------- bool
| def nodes.Node.Node.remove_neighbor | ( | self, | |
| node | |||
| ) |
Remove 'node' from the list of neighbors, effectively deleting that edge from the graph. Parameters ---------- node : Node Returns ------- None
1.8.11
