learning.NetStrucLner.NetStrucLner Class Reference

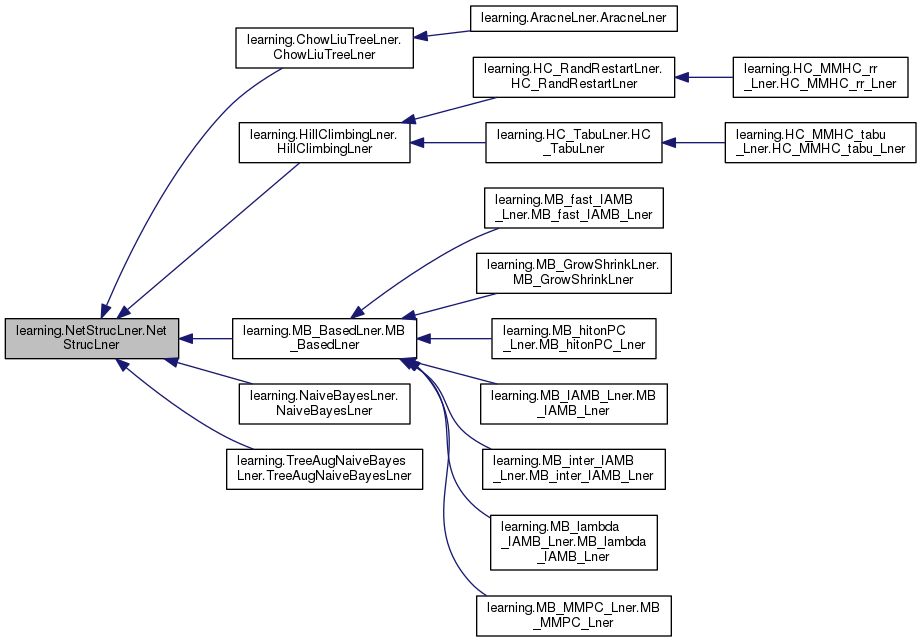

Inheritance diagram for learning.NetStrucLner.NetStrucLner:

Public Member Functions
def	__init__ (self, is_quantum, states_df, vtx_to_states=None)
def	fill_bnet_with_parents (self, vtx_to_parents)

Static Public Member Functions
def	learn_nd_state_names (bnet, states_df)
def	import_nd_state_names (bnet, vtx_to_states)
def	int_sts_detector (sub_states_df)

Public Attributes
	is_quantum
	bnet
	states_df
	ord_nodes

Detailed Description

Learning a Bayesian Network is usually done in two steps (1) learning
the structure (i.e. the graph or skeleton) (2) learning the parameters (
i.e., the pots).

NetStrucLner (Net Structure Learner) is a super class for all classes
that learn the structure of a net based on empirical data about states
given in a pandas dataframe called states_df.

NetParamsLner is a class for learning the parameters of a net (either a
cbnet or qbnet).

So far, Quantum Fog assumes that structure learning is all made, even in
the quantum case, from state data representing incoherent measurements
of all nodes. It's possible that in the future we will add some
schemes for predicting graph structure in the quantum case that use some
coherent measurements that yield both state and phase information.

IMPORTANT: We will use the word 'vtx' = vertex to denote a node name and
the word 'node' to denote a Node object.

Attributes
----------
is_quantum : bool
    True for quantum bnets amd False for classical bnets
bnet : BayesNet
    a BayesNet in which we store what is learned
states_df : pandas.DataFrame
    a Pandas DataFrame with training data. column = node and row =
    sample. Each row/sample gives the state of the col/node.
ord_nodes : list[DirectedNode]
    a list of DirectedNode's named and in the same order as the column
    labels of self.states_df.

Constructor & Destructor Documentation

def learning.NetStrucLner.NetStrucLner.__init__	(		self,
			is_quantum,
			states_df,
			vtx_to_states = None
	)

Constructor

Parameters
----------
is_quantum : bool
states_df : pandas.DataFrame
vtx_to_states : dict[str, list[str]]
    A dictionary mapping each node name to a list of its state names.
    This information will be stored in self.bnet. If
    vtx_to_states=None, constructor will learn vtx_to_states
    from states_df

Returns
-------

Member Function Documentation

def learning.NetStrucLner.NetStrucLner.fill_bnet_with_parents	(		self,
			vtx_to_parents
	)

Takes self.bnet with no arrows but named nodes a priori and fills it
with arrows taken for a dictionary vtx_to_parents mapping vertices
to a list of their parents

Parameters
----------
vtx_to_parents : dict[str, [str]]

Returns
-------

def learning.NetStrucLner.NetStrucLner.import_nd_state_names (   bnet,   vtx_to_states  )

static

Enters vtx_to_states information into bnet.

Parameters
----------
bnet : BayesNet
vtx_to_states : dict[str, list[str]]
    A dictionary mapping each node name to a list of its state names.

Returns
-------
None

def learning.NetStrucLner.NetStrucLner.int_sts_detector (   sub_states_df )

static

This function returns True iff the first row of sub_states_df has
only int entries. We will assume that if the first row does,
then all rows do.

Parameters
----------
sub_states_df : pandas.DataFrame

Returns
-------
bool

def learning.NetStrucLner.NetStrucLner.learn_nd_state_names (   bnet,   states_df  )

static

Compiles an alphabetically ordered list of the unique names in each
column of states_df and makes those the state names of the
corresponding node in bnet.

Parameters
----------
bnet : BayesNet
states_df : pandas.DataFrame

Returns
-------
None

---

The documentation for this class was generated from the following file:

• learning/NetStrucLner.py
